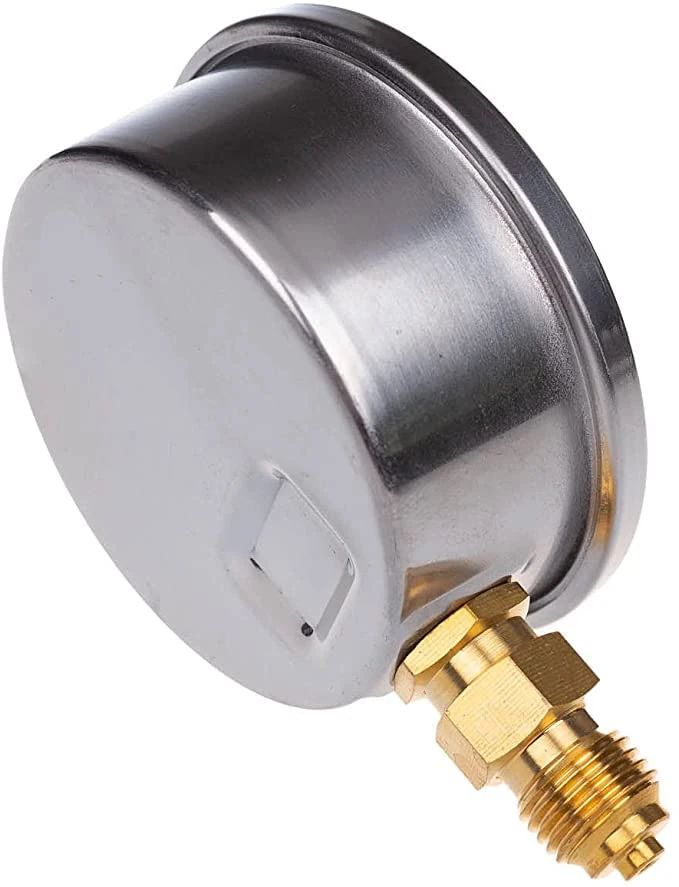

DPM Tapes MX70 · G1/4 · Ø 63 mm
Request a quotation
TOOLS
DPM Tapes MX70 · G1/4 · Ø 63 mm
Selected variant: 0–10 bar
DPM Tapes MX70 stainless steel pressure gauge 63 mm, filled with glycerine, with double bar/PSI scale and G 1/4 connection from the bottom for subject systems to vibrations.
Purchasable product
TECHNICAL DESCRIPTION
Description and applications
Technical information for the product family, to be verified for the specific application.
DPM Tapes MX70 is a 63 mm pressure gauge with AISI 304 stainless steel case, glycerin filling and double bar/PSI reading. This variant measures from 0 to 10 bar and uses a G 1/4 connection positioned from the bottom.
Main uses
It is indicated for pressure control in pneumatic, hydraulic and industrial systems, compressors, pumps and machines where vibrations or pulsations make the reading of a dry instrument less stable.
Operating characteristics
The glycerine dampens the oscillations of the pointer and helps to protect the movement. The IP65 case, the 63 mm dial and the bar and PSI scale facilitate use in compatible internal or external environments.
Checks before ordering
Before choosing, the measuring range, type and position of the connection, compatibility of the fluid, operating temperature and overpressure conditions must be checked. The final configuration is confirmed by DPM Tapes.
